Separating $\mathsf{CK}$ and $\mathsf{IK}$, semantically

There are many non-classical variations of modal logic. In this post, I will talk a bit about the two major variations $\mathsf{CK}$ and $\mathsf{IK}$ of the modal logic $\mathsf{K}$. Recently, Anupam Das and Sonia Marin showed that these logics do not prove the same $\Diamond$-free formulas; and not so recently Grefe proved the same in their PhD thesis. This result was not common knowledge, and commonly assumed false. Das and Marin's proof is syntactical; here I give a simple semantical of this theorem by showing $\mathsf{IK} \models \neg\neg\Box\bot\to\Box\bot$ but $\mathsf{CK} \not \models \neg\neg\Box\bot\to\Box\bot$.

For much more on the logics between $\mathsf{CK}$ and $\mathsf{IK}$, see Das and Marin's "On Intuitionistic Diamonds (and Lack Thereof)" and de Groot, Shillito, and Clouston's "Semantical Analysis of Intuitionistic Modal Logics between $\mathsf{CK}$ and $\mathsf{IK}$". I also wrote about cases where the $\mathsf{C}$ and $\mathsf{I}$ versions of modal logics coincide in "Collapsing Constructive and Intuitionistic Modal Logics".

A few definitions

These definitions are standard in intuitionistic modal logic; for more detailed explanations, see the papers cited in the introduction.

$\mathsf{CK}$ is the logic which axioms are:

the intuitionistic tautologies;
$K_\Box := \Box(\varphi\to\psi) \to (\Box\varphi \to \Box \psi)$; and
$K_\Diamond := \Box(\varphi\to\psi) \to (\Diamond\varphi \to \Diamond \psi)$;

and closed under the rules \[ (\mathbf{Nec}) \; \frac{\varphi}{\Box\varphi} \;\;\;\;\;\text{ and }\;\;\;\;\; (\mathbf{MP}) \; \frac{\varphi \;\;\; \varphi\to\psi}{\psi}. \] $\mathsf{IK}$ is obtained by adding to $\mathsf{CK}$ the axioms $FS := (\Diamond \varphi \to \Box\psi) \to \Box(\varphi\to\psi)$, $DP := \Diamond (\varphi\lor\psi) \to \Diamond\varphi\lor\Diamond\psi$, and $N := \neg \Diamond \bot$. These axioms all talk about diamonds, and none is purely about boxes.

The Kripke semantics for these logics combine the Kripke semantics of intuitionistic and modal logics. More precisely, a $\mathsf{CK}$-model is a tuple $M=\langle W, W^\bot ,\preceq, R, V \rangle$ where:

$W$ is the set of possible worlds;
$W^\bot\subseteq W$ is the set of fallible worlds, worlds where everything is true;
the intuitionistic relation $\preceq$ is a reflexive and transitive relation over $W$;
the modal relation $R$ is a relation over $W$;
$V:\mathrm{Prop}\to \mathcal{P}(W)$ is a valuation function.

As in intuitionistic logic, we require that, if $w \preceq v$ and $w\in V(P)$, then $v\in V(P)$. To guarantee the worlds in $W^\bot$ behave as we want, we require that, for all $P\in\mathrm{Prop}$, $W^\bot\subseteq V(P)$; and, if $w\in W^\bot$ and either $w\preceq v$ or $w R v$, then $v\in W^\bot$.

An $\mathsf{IK}$-model is a $\mathsf{CK}$-model where $W^\bot$ is empty and satisfies the following properties:

$wRv$ and $w\preceq w'$ implies there is (v'\) such that $v\preceq w' R v'$; and
$wR v \preceq v'$ implies there is $w'$ such that $w\preceq w' R v'$.

These are necessary to make the extra axioms $FS$, $DP$, and $N$ be sound.

The valuation of formulas is quite standard, we present only the cases where it differs from classical modal logics:

$M,w\models \bot$ iff $w\in W^\bot$;
$M,w\models \varphi\to\psi$ iff, for all $v\in W$, if $w\preceq v$ and $M,v\models\varphi$, then $M,v\models\psi$;
$M,w\models \Box\varphi$ iff, for all $v,u\in W$, if $w\preceq v$ and $vRu$, then $M,u\models\varphi$; and
$M,w\models \Diamond\varphi$ iff, for all $v\in W$, if $w\preceq v$ then, there is $u$ such that $vRu$ and $M,u\models\varphi$.

We can now state: $\mathsf{CK}$ and $\mathsf{IK}$ are complete with respect to their respective semantics.

$\mathsf{CK}$ does not validate $\neg\neg\Box\bot\to\Box\bot$

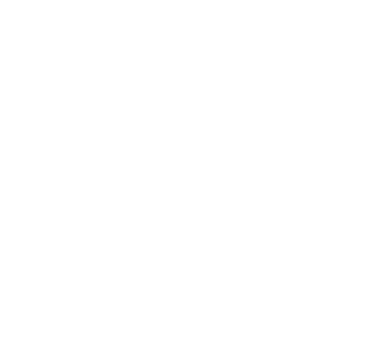

At the world $w_0$ in the following $\mathsf{CK}$-model, the formula $\neg\neg\Box\bot\to\Box\bot$ does not hold:

$Figure of a CK-model with worlds w0, w1, w2. The relations w0 \preceq w2 and w0 R w1 hold.$

$\mathsf{IK}$ validates $\neg\neg\Box\bot\to\Box\bot$

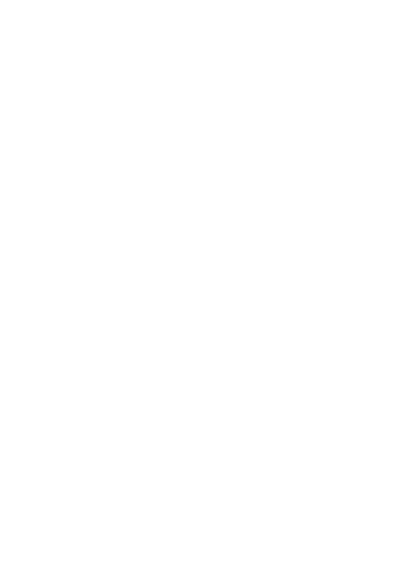

Fix an $\mathsf{IK}$-model $M$ and a world $w$. Suppose $w$ does not satisfy $\Box\bot$, then there are worlds $v_1$ and $v_2$ such that $w \preceq v_1$ and $v_1 R v_2$. If $w$ satisfies $\neg\neg\Box\bot$, there is $u_1$ such that $v_1\preceq u_1$ and $u_1$ satisfies $\Box\bot$. Now, by the relation between $R$ and $\preceq$, there is $u_2$ such that $u_1 R u_2$ and $v_2 \preceq u_2$. In particular, we have $u_2\models\bot$; this is impossible in $\mathsf{IK}$-models. So if $w$ satisfies $\neg\neg\Box\bot$ then $w$ satisfies $\Box\bot$ too.

$Figure summarizing the proof of \neg\neg\Box\bot\to\Box\bot in IK.$

TikZ Code for the figures

Here is the TikZ code for the figures in this post. Feel free to use them as you want.

Counter-example for $\mathsf{CK}\not\models \neg\neg\Box\bot\to\Box\bot$

\tikzstyle{world}=[circle,draw,minimum size=5mm,inner sep=0pt]
\begin{tikzpicture}
  \node (w) at (0,-2) {$w_0$};
  \node (w2) at (2,-2) {$w_1$};
  \node (v) at (0,0) {$w_2$};

  \draw[->] (w) -- (w2) node[midway,below] {$R$};
  \draw[->] (w) -- (v) node[midway,left] {$\preceq$};
\end{tikzpicture}

Schema for the proof of $\mathsf{IK} \models \neg\neg\Box\bot\to\Box\bot$

\tikzstyle{world}=[circle,draw,minimum size=5mm,inner sep=0pt]
\begin{tikzpicture}
  \node (w) at (0,-4) {$w$};
  \node (v1) at (0,-2) {$v_1$};
  \node (v2) at (2,-2) {$v_2$};

  \draw[->] (w) -- (v1) node[midway,left] {\(\preceq\)};
  \draw[->] (v1) -- (v2) node[midway,above] {\(R\)};

  \node (u1) at (0,0) {$u_1$};
  \draw[->] (v1) -- (u1) node[midway,left] {\(\preceq\)};

  \node (u2) at (2,0) {$u_2$};
  \draw[->,dashed] (u1) -- (u2) node[midway,above] {\(R\)};
  \draw[->,dashed] (v2) -- (u2) node[midway,right] {\(\preceq\)};
\end{tikzpicture}
