LaTeX bits

A collection of LaTeX code I find useful. Code in this page is licenced under CC0 1.0.

Resources

The Not So Short Introduction to LaTeX is a great introduction to LaTeX. This text has translations to many languages. There is also a lot of tutorials at Overleaf (which is also a full-blown TeX editor). For graphics, the TikZ manual is good. An unofficial .html version of the TikZ manual can be found here. For slides, I recommend beamer.

Checking for paper length

When writing conference papers, it is convenient to have an automated warning if the paper is too long. I put the following code on the end of the text (before or after bibliography, depending on the page restrictions):

\ifnum \thepage>10
Paper is too long!
Currently {\thepage} pages.
\PackageWarning{}{Paper is too long!}
\fi

Remember to put the right page limit in the place of 10. This may not be the prettiest way of doing it, but it works.

TikZ pictures to .png

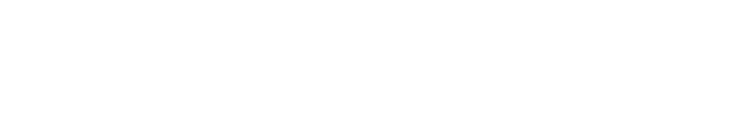

I have a handy figure_generator.tex file to produce standalone TikZ pictures. I just need to put the figure code in the file and run it once to get it as a .pdf file. As an example, to produce the figure

I use the code below:

\documentclass[border=1mm]{standalone}
\usepackage{amsmath,amssymb,amsfonts}
\usepackage{tikz}

\begin{document}
\tikzstyle{world}=[circle,draw,minimum size=7mm,inner sep=0pt]
\begin{tikzpicture}
  \node[world] (z) at (0,0) {$w_0$};
  \node[world] (a) at (1,0) {$w_1$};
  \node[world] (b) at (2,0) {$w_2$};
  \node[world] (c) at (3,0) {$w_3$};
  \node (d) at (4,0) {$\cdots$};
  \node[world] (e) at (5,0) {$w_{n}$};


  \draw[->] (z) -- (a);
  \draw[->] (a) -- (b);
  \draw[->] (b) -- (c);
  \draw[->] (c) -- (d);
  \draw[->] (d) -- (e);

  \node (el) at (5.5,-0.2) {$P$};
\end{tikzpicture}
\end{document}

The standalone class makes .pdf file have the same size as the figure. The border option adds some padding to the figure (sometimes some parts stay hidden). Other than TikZ, the loaded packages are for convenience. Substitute contents of tikzpicture and the TikZ style by your own code.

I use ImageMagick to convert and edit the resulting .pdf file. To transform the .pdf into a .png, I run:

magick -density 300 figure_generator.pdf a.png

Since my blog is always in dark mode, I want the figure to be white with transparent background. To do so, I run:

magick a.png -channel RGB  -negate  negate_a.png

An empty .tex template if available here.

Beamer layout

I use the following style for my beamer slides:

\useoutertheme[subsection=false,shadow]{miniframes}
\useinnertheme{default}
\usefonttheme{serif}
\beamertemplatenavigationsymbolsempty
\usepackage{palatino}

\setbeamerfont{title like}{shape=\scshape}
\setbeamerfont{frametitle}{shape=\scshape}
\renewcommand\refname{\scshape References}

\definecolor{TohokuPurple}{RGB}{65,59,156}
\definecolor{UFGBlue}{RGB}{0,103,172}
\definecolor{UFGBlueLight}{RGB}{161,184,214}

\setbeamercolor*{lower separation line head}{bg=TohokuPurple}
\setbeamercolor*{normal text}{fg=black,bg=black!10}
\setbeamercolor*{alerted text}{fg=red}
\setbeamercolor*{example text}{fg=black}
\setbeamercolor*{structure}{fg=black}
\setbeamercolor*{block title}{fg=black,bg=black!20}
\setbeamercolor*{block body}{fg=black,bg=black!15}

\setbeamercolor*{palette tertiary}{fg=black,bg=black!20}
\setbeamercolor*{palette quaternary}{fg=black,bg=black!20}

For most of the details, I recomment looking at the beamer user guide. I define the colors for the universities where I did my undergrad and PhD.

The command \beamertemplatenavigationsymbolsempty hides the the navigation icons from the slides. I've heard of only one person who uses these symbols, and their beamer setup is very unusual. I'd also recommend loading the packageappendixnumberbeamer to omit the slides in the appendices from the slide count; and to load beamer with the option compress to make all navigation bars on the slide as small as possible. Less cruft is better.

Proofs longer than one slide

It's better when a proof fits one slide, but sometimes it's not possible. I use the following code to for proofs which do not fit one slide:

\makeatletter
\newenvironment<>{proofs}[1][\proofname]{
    \par
    \def\insertproofname{#1\@addpunct{.}}
    \usebeamertemplate{proof begin}#2}
  {\usebeamertemplate{proof end}}
\makeatother

If a proof needs n slides, use proofs environments on the n-1 first slides, and a proof environment on the last.

Dividing a LaTeX file into multiple files

I use \input{file_name} to divide a .tex file into many files. file_name is not compilable by itself, but the main file compiles smoothly. Download a minimal working example here (.zip, 94KB).

CV

I write my CV in LaTeX using a template by Dario Taraborelli.
